Safety Transport Flatbed Container Trailer Transport 40 Ft With Linglong Tire

Product Categories

JINAN TRUCKMAN AUTOMOBILE CO.,LTD

Contact Now

Name: Safety Transport Flatbed Container Trailer Transport 40 Ft With Linglong Tire
Brand: TRUCKMAN AUTO
Price: 1 USD

Brand Name : TRUCKMAN AUTO

Model Number : TKM370177

Certification : CTN, SGS, BV

Place of Origin : CHINA

MOQ : 1 Unit

Price : Price is negotiable

Payment Terms : L/C, T/T

Supply Ability : 1500 Pcs / One Month

Delivery Time : 20-25 days

Packaging Details : Nude

Material : Steel

Size : 12500*2500*1550mm

Type : Flatbed Container Semi Trailer

Axle : BPW or FUWA

Suspension : Mechanical Suspension

Landing gear : JOST E100 flatbed semi trailer

Product name : 3 axle flatbed semi trailer

King pin : 3.5" JOST brand

Contact Now

-1. 40FT Container Flatbed Semi Trailer.

-. With double container lock, guarantee the safety transport.

-. WABCO brand brake system and 6 pcs brake chamber.

-. The axles have FUWA, HJ, BPW brand could optional.

-. Thickness: bottom 14mm, upper plate is 12mm, middle 8mm.

Overall dimension	12500 2500 1550mm
Loading capacity	40T
Axle brand and number	13T Fuwa Brand, 3 axles
Wheel base(mm)	6880+1310+1310
Kingpin	50# or 90#
Steel Spring	10/10/10 leaf spring suspension
The material of Main beam	The height of the beam is 500 mm, upper plate is12mm, down plate is 14mm,
	middle plate is 8mm.
Tyre and quantity	12R22.5 12pieces
Landing gear	28T, double speed operation
Platform plate	3mm Checkered steel plate
Brake system	Dual Line braking system ,none ABS.
Brake air chamber	Four double and two single chamber
	24V,7 pin socket,One set 6-core standard Cable
Electrical system
Light	Tail lamp with turn signal, brake light & reflector, side lamp etc
Tool box	1 set
Spare tire carrier	2 sets

Safety Transport Flatbed Container Trailer Transport 40 Ft With Linglong Tire

-2. Shipment Detail.

Safety Transport Flatbed Container Trailer Transport 40 Ft With Linglong Tire

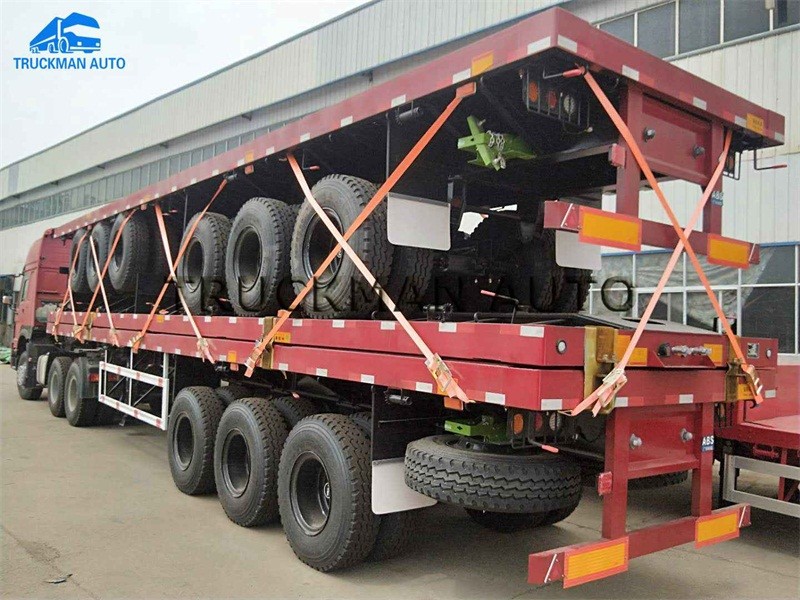

We put 3 pcs or 2 pcs container flatbed trailer together, and try to reduce the shipment height avoid the high

freight cost, and also could put 2 pcs container semi trailer in one 40FT container also.
