Home > Heavy Duty Dump Truck >

273KW Heavy Duty Dump Truck Loading 41-50 Tons For Construction And Mining

JINAN TRUCKMAN AUTOMOBILE CO.,LTD
Contact Now

273KW Heavy Duty Dump Truck Loading 41-50 Tons For Construction And Mining

Brand Name : Sino truck

Model Number : ZZ3317N3047W

Certification : BV,SGS,CIQ,CTN,CO,FORM M,FORM F

Place of Origin : China

MOQ : 1 Unit

Price : Price is negotiable

Payment Terms : T/T

Supply Ability : 500 Units Per Month

Delivery Time : 30 Working Days

Packaging Details : Naked

Drive wheel : 8x4

Fuel type : Diesel

Condition : New

Transmission type : Manual

Transmission : HW19710 Manual 10forward +2 Reverse

Horse power : 371hp

Contact Now

Sinotruck Howo 8x4 Tipper Truck Loading 41-50 Tons For Construction And Mining

Model No. ZZ3317N3047W
Engine Model WD615.47,371HP euro 2
Engine capacity 9.726L
Engine power 273KW
Cabin HW76, Sleeper,A/C
Steering Left hand Steering Z F8098
Axles Front HR9 Rear HC16, Ratio 5.45
Bumper High level
Cargobox 7000*2300*1500mm,Bottom 8mm Side 6mm,Front lifting
Tires 12+1 pcs,Triangle 13R22.5
Fuel Tank 300L
Colors Red,Green,Blue,Yellow,White
Driving type 8x4 Left hand,Option Right Hand

273KW Heavy Duty Dump Truck Loading 41-50 Tons For Construction And Mining

Operating procedures
1. Do not suddenly push the lifting handle to the "lowering position" during the full-load lifting.

If this operation error occurs, the carriage suddenly rushes down, which will bring a lot of impact to the frame and even an accident. Therefore, the above operations should be avoided as much as possible, and if there are special circumstances, they must be operated carefully, and the landing speed should be slowed down as much as possible. Don't suddenly drop the carriage to the end.

2. Don't use junk car-junk brake to unload.

Due to the large inertial force of the car (usually 5 to 20 times the rated lifting force), it is easy to cause damage to the permanent deformation of the frame, welding of the compartment and sub-frame, burning of the oil pump or damage to the seal ring, and damage to the hydraulic cylinder. , The service life of the vehicle is reduced, and in serious cases, a rollover accident may occur. Therefore, it is generally forbidden to drive a dump truck while it is being lifted.

3. After the dump truck is unloaded, the power take-off must be disengaged to make the vehicle feasible.

If this operation error occurs, when the dump truck is running, the lift pump is running at a high speed for a long time without load because the power take-off is in the "engaged" position. As a result, the temperature of the hydraulic oil rises rapidly, which can easily cause damage to the oil seal of the oil pump, or even cause the oil pump to "burn out". What's more serious is that the operation of the oil pump means that the hydraulic system has a power source. Accident.

4. The power take-off cannot be in the "on" position when driving.

If in the "on" state (the red light is on), the oil pump will continue to rotate and the hydraulic system will have a power source. This will cause the cabin to automatically lift due to misoperation on the pneumatic control valve; Even if the control and distribution valve is in the "down" position, the oil must enter the oil pump, which will cause the oil pump to burn out.

273KW Heavy Duty Dump Truck Loading 41-50 Tons For Construction And Mining

Maintenance tips
New dump trucks or overhauled vehicles must be commissioned to make the lifting process stable and free of movement.

When using, all parts should be properly selected according to the regulations, which greatly saves the unloading time and labor, and the lifting mechanism exchanges the oil strictly on schedule.

Ship according to rated load. Overload is strictly prohibited.


Product Tags:

industrial dump truck



heavy duty tipper trucks


Quality 273KW Heavy Duty Dump Truck Loading 41-50 Tons For Construction And Mining wholesale

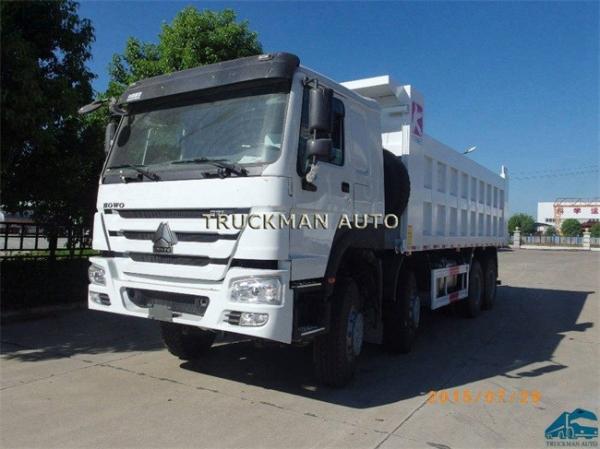

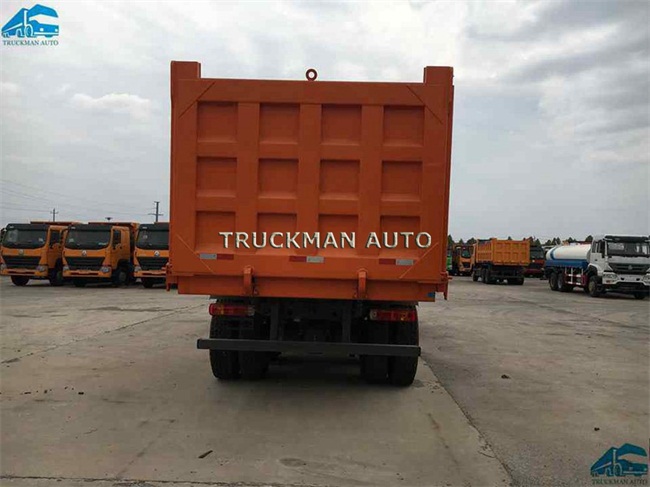

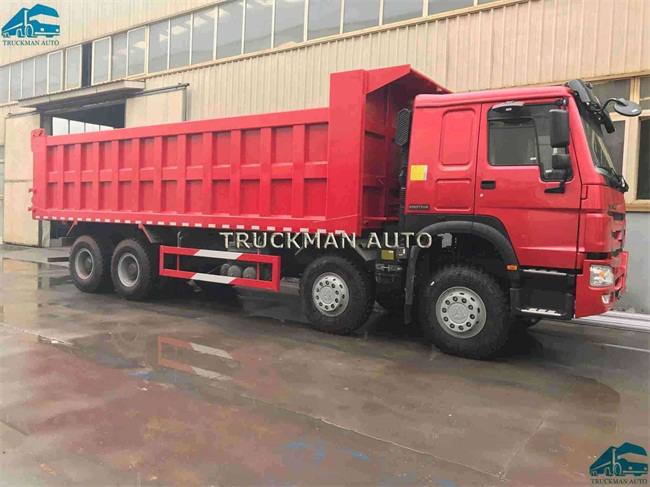

273KW Heavy Duty Dump Truck Loading 41-50 Tons For Construction And Mining Images
