2m3 4870mm Lift LW300FN 3000kg Wheel Loader

Brand Name : XCMG

Model Number : LW300FN

Certification : SGS, BV, CIQ

Place of Origin : CHINA

MOQ : 1 Unit

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 1500 Unit / Per Month

Delivery Time : 7-10 working days

Packaging Details : Nude

Engine : WP6G125E22

Working height(fully lifted) : 4870mm

Gradeability : 28°

Operating Weight : 3000kg

Bucket : 2m3

Tread : 1850mm

Contact Now

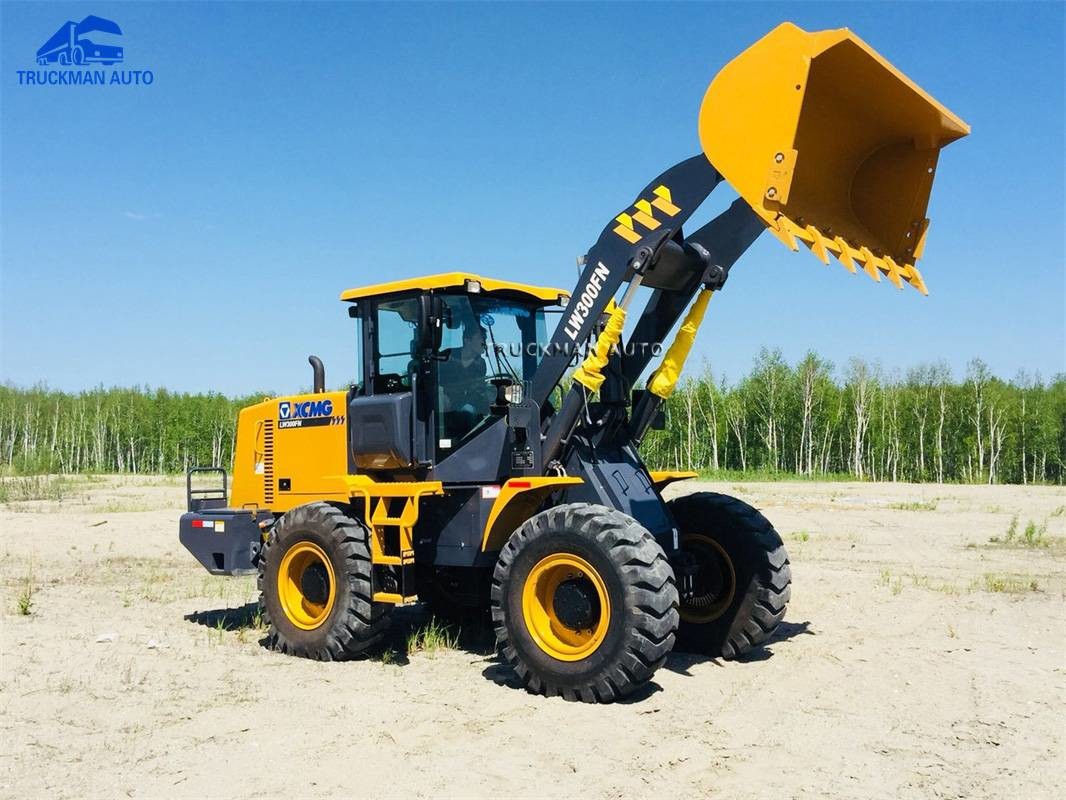

XCMG LW300FN 3 Tons Wheel Loader

-1. LW300FN XCMG 3 Tons Front End Wheel Loader Information.

LW300FN XCMG 3 tons front end wheel loader could work at port, warehouse, construction and mining site. The tire material use special rubber with 12 PR, the tire pattern could meet the bad road work condition, and with high loading weight. Variety attached tools meeting requirements of different working conditions

2m3 4870mm Lift LW300FN 3000kg Wheel Loader

Description Unit Parameter value
Rated operating load kg 3000
Bucket capacity m³ 1.5~2.5
Machine weight kg 10600±200
Dump clearance at maximum lift mm 2770~3260
Reach at maximum lift mm 1010~1210
Wheel base mm 2600
Tread mm 1850
Height of hinge at maximum lift height mm 3830
Working height(fully lifted) mm 4870
Max.breakout force kN 130
Max.horse power kN 95
Hydraulic cycle time-raise s 5.5
Total hydraulic cycle time s 10
Min. turning radius over tyres mm 5165
Articulation angle ° 35±1
Gradeability ° 28
Tyre size LW300FN 17.5-25-12PR
Overall machine dimension L×W×H mm 7050×2482×3118
Model WP6G125E22
Emission standards Emission 2
Rated Power/Speed kW/rpm 92/2200
Fuel Tank L 170
Hydraulic Tank L 170
Ⅰ-gear(F/R) km/h 8/10
Ⅱ-gear(F/R) km/h 13/30
Ⅲ-gear(F) km/h 24/-
Ⅳ-gear(F) km/h 40/-

-2. LW300FN XCMG 3 Tons Front End Wheel Loader Advantage.

2m3 4870mm Lift LW300FN 3000kg Wheel Loader

The bucket is made of high strength material to realize high wear and impact resistance.

The diversified configurations and complete attachments adapt to the construction needs in different regions and under different working conditions.

The optional A/C and the sound insulation and noise reduction measure build elaborately a comfortable operating environment.


Product Tags:

3000kg Wheel Loader



2m3 Wheel Loader



LW300FN Heavy Construction Machinery


Quality 2m3 4870mm Lift LW300FN 3000kg Wheel Loader wholesale

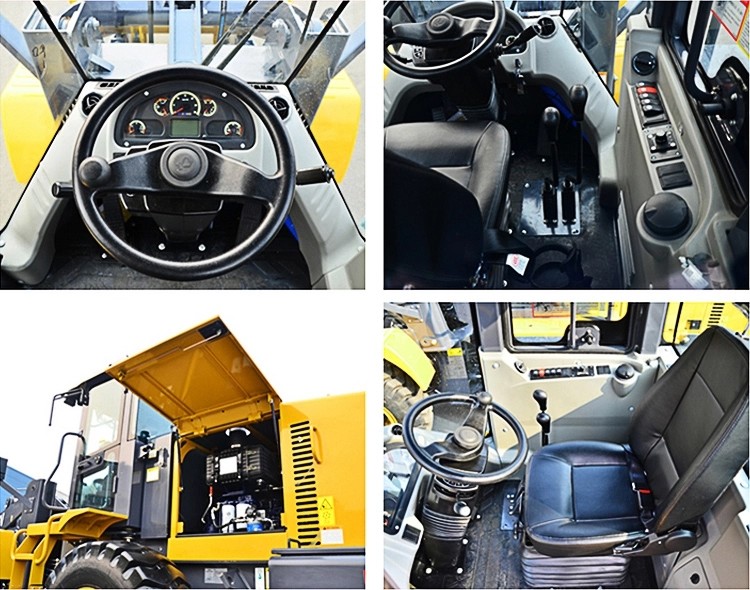

2m3 4870mm Lift LW300FN 3000kg Wheel Loader Images
