Q345 50 Tons 4 Axle 40FT Container Flatbed Semi Trailer

JINAN TRUCKMAN AUTOMOBILE CO.,LTD
Contact Now

Q345 50 Tons 4 Axle 40FT Container Flatbed Semi Trailer

  • 1
  • 2
  • 3

Brand Name : TRUCKMAN AUTO

Model Number : TKM450CCT

Certification : SGS, BV, CIQ

Place of Origin : CHINA

MOQ : 1 Unit

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 1500 Unit / Per Month

Delivery Time : 20 working days

Packaging Details : Nude

Total Weight : 50000kg

Axle : 4x13000kg, 4 axle

Support Leg : JOST, 28 tons

Tire : 12R22.5, 16 pcs tire

Material : Q345, high strength steel

Warranty : 50,000km

Contact Now

50 Tons 4 Axle 40FT Container Flatbed Trailer For Ghana

-1. 4 Axle Container Flatbed Trailer Main Detail.

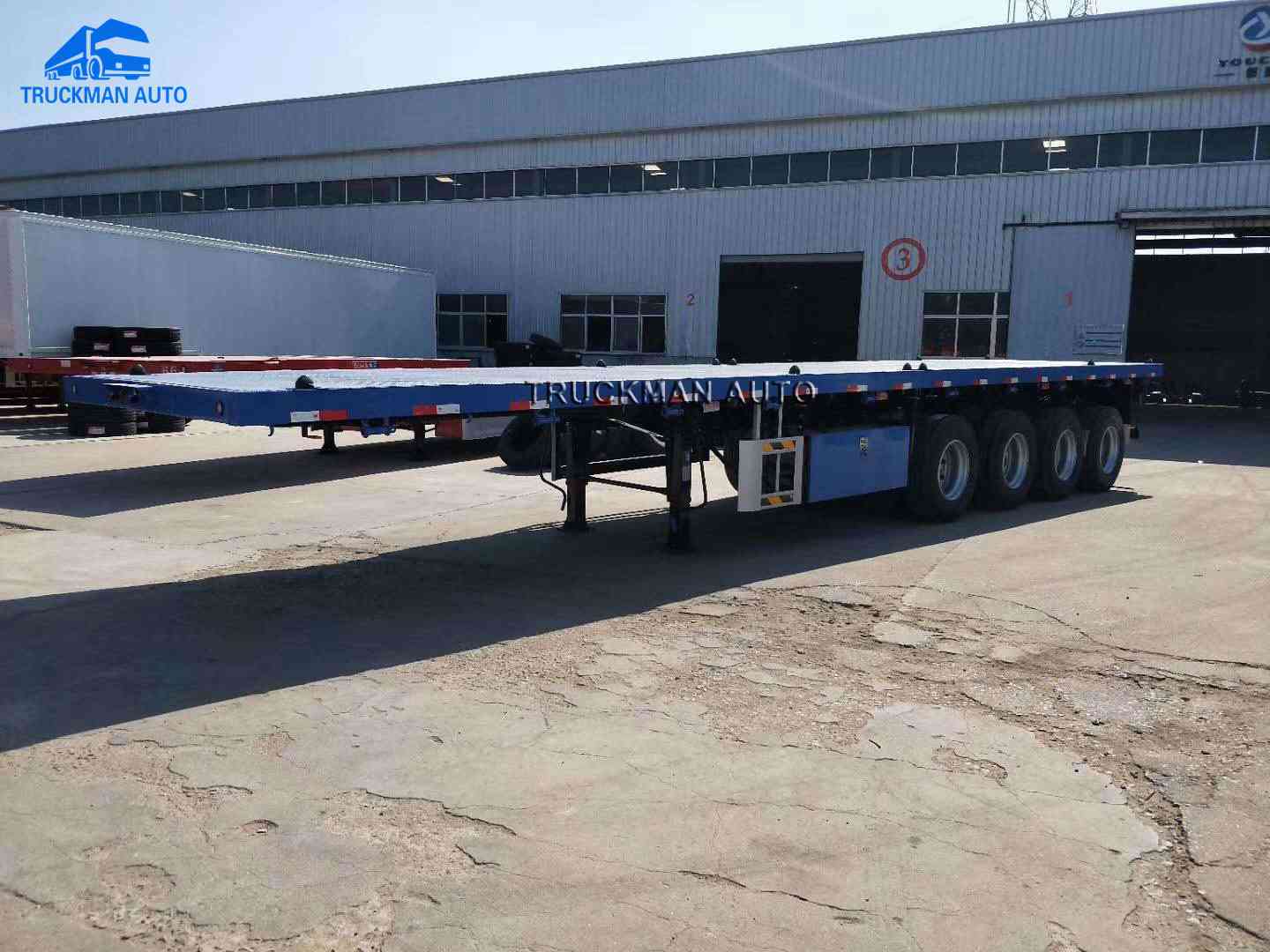

Q345 50 Tons 4 Axle 40FT Container Flatbed Semi Trailer

Due to some countries have a loading tons limit, so the flatbed trailer suspension adopt the air lifting type is necessary. 4 Axle Container Flatbed Trailer is our design new trailer for Ghana, Senegal, Mali etc countries. The front axle could lifting, the rear 3 axle adopt the mechanical suspension

-2. 4 Axle Container Flatbed Trailer Main Specification.

Description Parameter value
Product Name 4 Axle Container Flatbed Trailer
Loading Weight 60,000kg
Tare Weight 11,000kg
Axle 4 axle, 4x13 tons
Suspension America type, 8mm thickness
Leaf Spring 90x16mmx10pcsx6sets
Rim 16mm thickness
Tire 12.00R20 or 315/80R22.5, 16 pcs
Brake System WABCO brand, ABS and 8 pcs brake chamber
Thickness Of Frame

Upper plate 16mm, middle 8mm,

lower plate 18mm, “I” type main beam

Material Q345, high strength steel
Others 12 pcs container lock, 24 pcs rope tightener
Dimension 12500x2500x1550+800mm

The specification is only for reference, we could design the flatbed trailer according to your request.

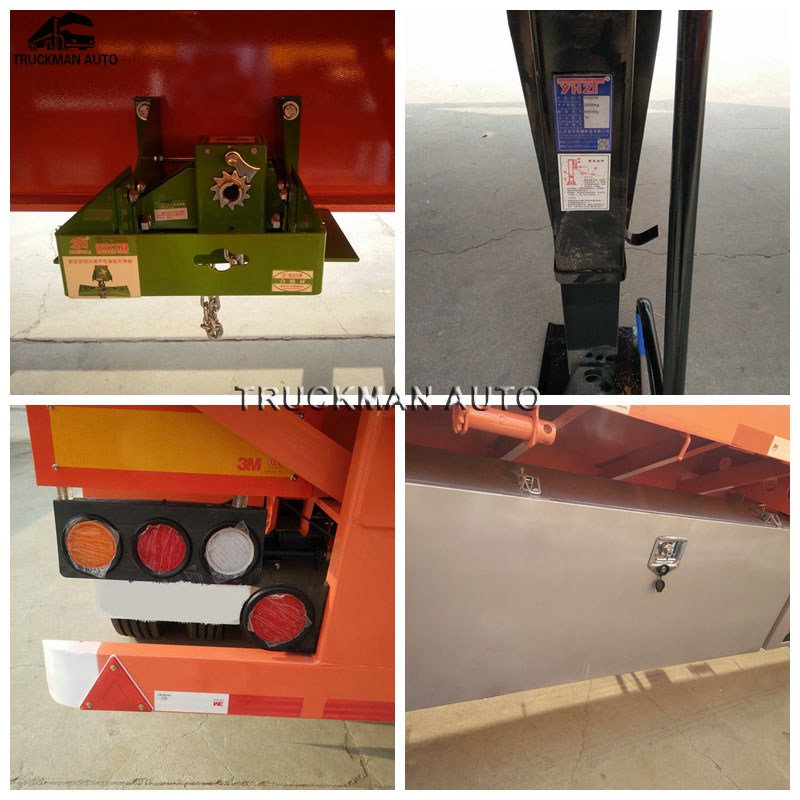

-3. 4 Axle Container Flatbed Trailer Detail Picture.

Q345 50 Tons 4 Axle 40FT Container Flatbed Semi Trailer

our TRUCKMAN AUTO brand 4 Axle Container Flatbed Trailer main spare parts work with famous brand, such as JOST support leg and tractor pin, LINGLONG brand tire, WABCO brake system etc.
