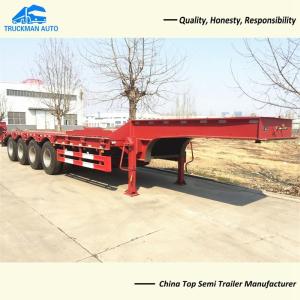

4 Axle 80 Tons Low Bed Semi Trailer For Ghana
-1. 4 Axle 80 Tons Low Bed Semi Trailer Detail.
4 axle 80 tons low bed semi trailer tire use the radial model, 12.00R20. Suitable for the bad road
work condition, the brand is CHAOYANG, LINGLONG optional.
-. The material is high strength steel Q355, main beam and side beam thickness enhanced.
-.Can add the 200-500mm extendable plate, for big size bulldozer, excavator transport etc.
-2. 4 Axle 80 Tons Low Bed Semi Trailer Specification.
| Description | Parameter Value |
| Product Name | 4 Axle 80 Tons Low Bed Semi Trailer |
| Application | For excavator, road roller etc transport |
| Axle | 4 axle, 16 tons axle, ZY brand |
| Suspension | Heavy duty 8mm thickness |
| Leaf Spring | 90x16mmx10pcsx8sets |
| Tire | 12.00R20, 16 pcs, radial model |
| Rim | 18mm thickness |
| Support Leg | JOST 28 tons |
| Tractor Pin | JOST 90# heavy duty version |
| Ladder | Mechanical model, hydraulic ladder optional |
| Loading Tons | 80 tons |
| Dimension | 13000x3000x1350mm |
The 4 axle 80 tons low bed semi trailer specification only for your reference, we will recommend other
model low bed semi trailer according to your request.
-3. 4 Axle 80 Tons Low Bed Semi Trailer Material Detail.
TRUCKMAN AUTO 4 axle 80 tons low bed semi trailer use the Q355 high strength steel material,
instead of Q235 carbon steel. The Q355 high strength steel advantage as follow:
A. The yield strength of Q355 steel can reach 355MPa, while the yield strength of Q235 steel is only 235MPa.
B. The purchase cost of Q355 steel is 2 times that of Q235 steel, but the bearing capacity and service
life are 5 times that of Q235 steel.
C. Q235 is just an ordinary steel plate, not a high strength plate. It is only suitable for some simple
semi trailer cargo boxes, such as the fuel tank trailer tank body. For flatbed trailer cargo box,
we suggest use the Q355 high strength steel.

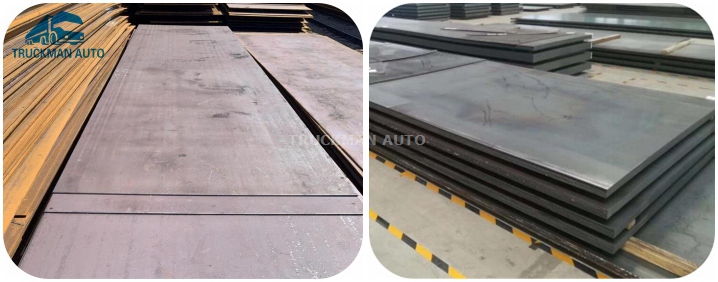

Q235 Carbon Steel Q355 High Strength Steel
