4 Axle 80 Tons Low Flatbed Semi Trailer

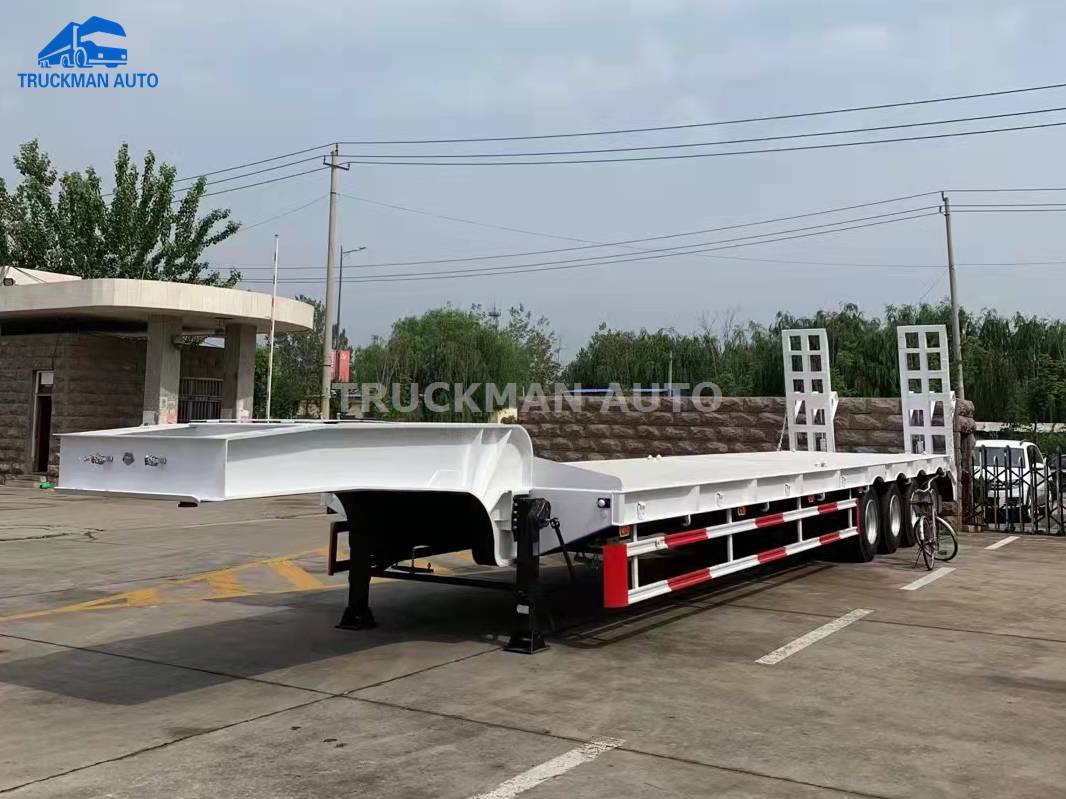

-1. 4 Axle 80 Tons Low Flatbed Semi Trailer Detail.
The low flatbed semi trailer can work for heavy duty machinery transport, such as excavator,
bulldozer etc. And loading platform size range from 3000-4000mm, for big machinery haulage.
-. The material use the high strength steel, directly purchase from China world steel factory,
with high loading capacity and low purchase cost.
-. The 4 pcs axle all adopt the 16 tons, ZY, FUWA, BPW brand axle optional.
-2. 4 Axle 80 Tons Low Flatbed Semi Trailer Specification.
| Description | Parameter Value |
| Product Name | 4 Axle 80 Tons Low Flatbed Semi Trailer |
| Application | For bulk cargo transport |
| Axle | 4x16000, ZY, FUWA, BPW optional |
| Tire | 12.00R20, radial model tire, 16 pcs |
| Suspension | Heavy duty mechanical suspension |
| Leaf Spring | 90x16mmx10pcs |
| Landing Gear | 28 tons, JOST brand |
| Loading Platform | 9000x3000-4000mm |
| Loading Tons | 80000kg |
| Dimension | 13000x3000x3300mm |
The 4 axle 80 tons low flatbed semi trailer specification only for your reference, we will
recommend other model low flatbed semi trailer according to your request.
-3. 4 Axle 80 Tons Low Flatbed Semi Trailer Detail.
Low flatbed semi trailer ladder have two model can optional, mechanical spring ladder and
hydraulic ladder. Advantage and disadvantage these two ladders as follow:
A. Mechanical Spring Ladder:
The mechanical spring ladder need manual operation, but the procurement cost is low and the
maintenance cost is also low.
B. Hydraulic Ladder:
The hydraulic ladder is convenient for unloading, saving time and effort. However, it has high
requirements on the working conditions and environment, and dust will cause the hydraulic
system to be blocked, which is easy to break, and the maintenance cost is high.
Mechanical Spring Ladder Hydraulic Ladder
Product Tags:
|
|

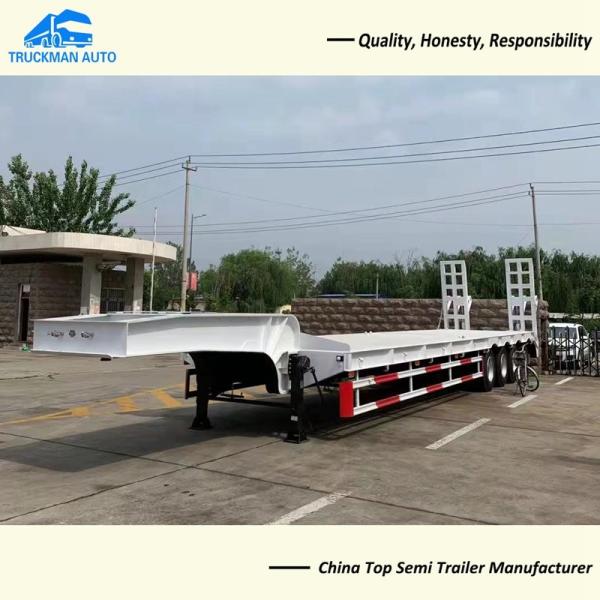

4 Axle 80 Tons Low Flatbed Semi Trailer With 12.00R20 Tire Images
|
