-1. SINOTRUK HOWO 50 Tons Tipper Truck Truck Detail.

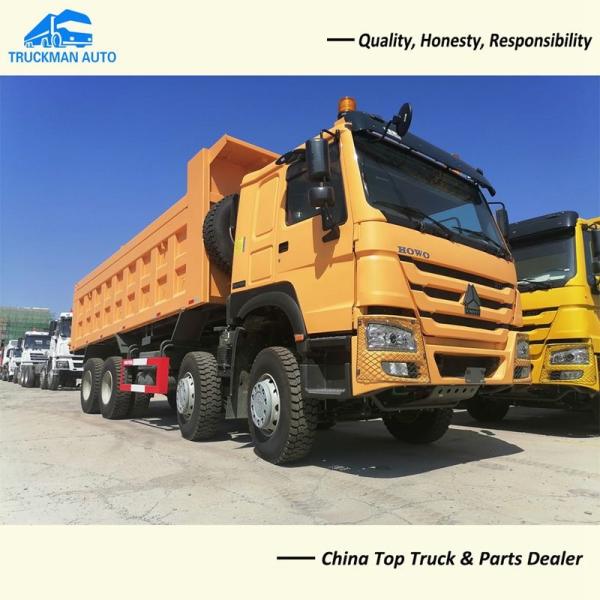

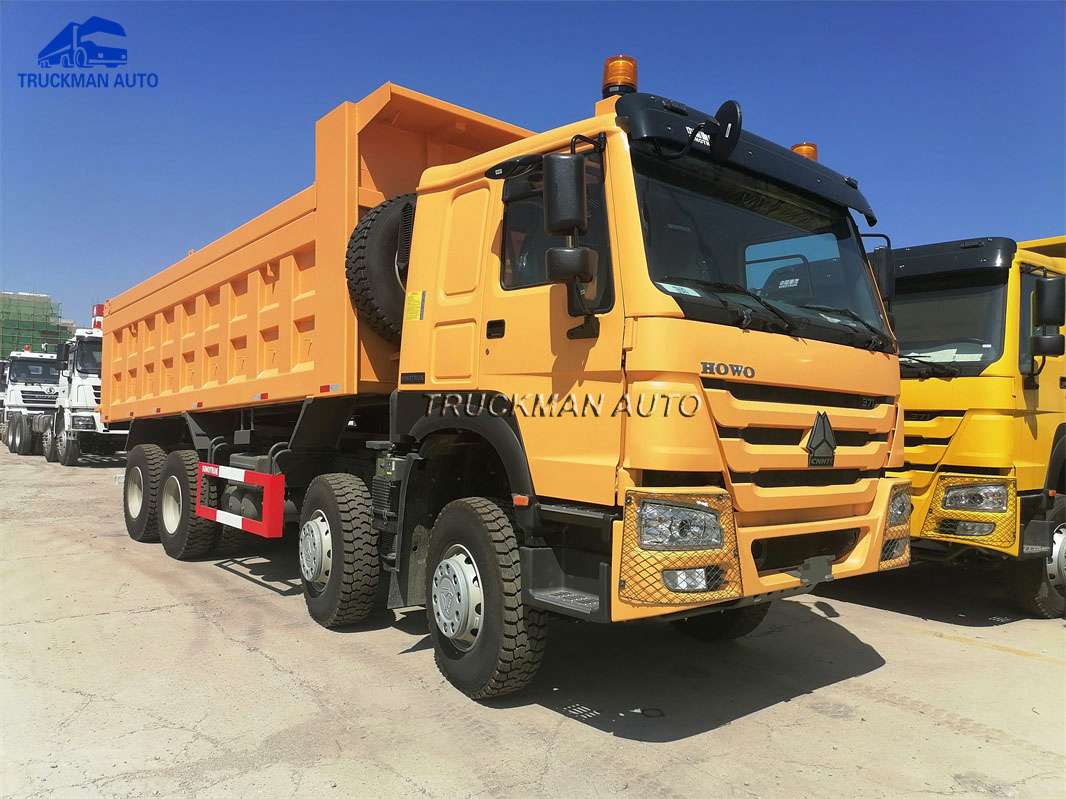

12 wheel SINOTRUK HOWO 50 tons tipper truck can suitable for mining and construction work, the bucket
material adopt the HARDOX 450 wearable steel, and adopt the automatic welding.
-2. SINOTRUK HOWO 50 Tons Tipper Truck Truck Main Specification.
| Description | Parameter value |
| Product Name | SINOTRUK HOWO 50 Tons Tipper Truck |
| Application | For construction work only |
| Engine | WD615.47, 371HP, EURO II |
| Cabin | HW76 model, with one bed, A/C |
| Gearbox | HW19710, 10 forward and 2 reverse gear |
| Front Axle | 2x9,000kg |
| Driving Axle | 2x16,000kg |
| Tire | 13R22.5, 12+1 pcs, TRIANGLE brand |
| Bucket | 7000x2300x1500mm, bottom 8mm, side 6mm |
| Fuel Tank | 300L (400L fuel tank optional) |
| Loading Tons | 40-50 tons |
| Other | Intercooler protect cover, reverse buzzer optional |
| Dimension | 10200x2580x3350mm |
The SINOTRUK HOWO 50 tons tipper truck specification is only for reference, we could recommend the other
model SINOTRUK HOWO tipper truck according to your request.
-3. SINOTRUK HOWO 50 Tons Tipper Truck Gearbox Detail.
The SINOTRUK HOWO 50 tons tipper truck adopt the HW19710 model gearbox, with 10 forward gear and 2 reverse gear.
The gearbox collocation with HW70 series power take off, supply the enough power to tipper truck lifting the bucket.

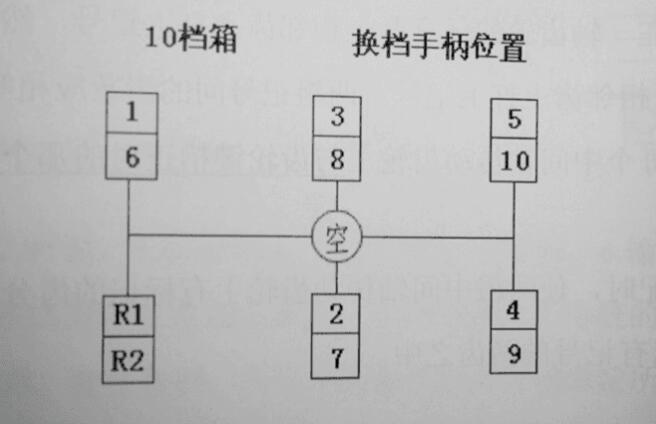

And here is gearbox gear picture for your reference.
-4. SINOTRUK HOWO 50 Tons Tipper Truck Bucket.
The bucket height can add 10-30mm extra height for loading more cargoes, and also can easy put down when dont use.
