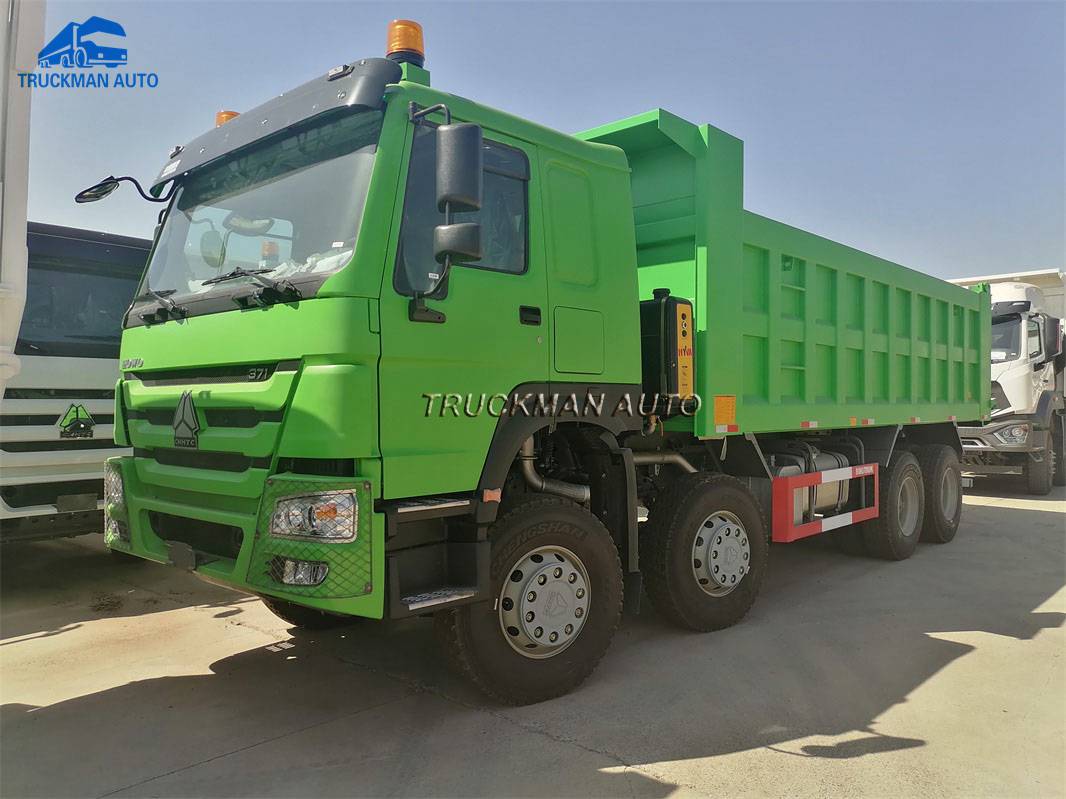

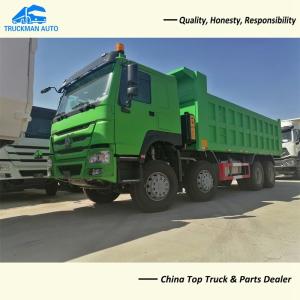

-1. SINOTRUK HOWO 8x4 Mining Dump Truck Detail.
SINOTRUK HOWO 8x4 mining dump truck can transport all kind of mining material, such as bauxite,
limestone, sand, gravel, copper etc. The main parts lifting system adopt the HYVA brand, lifting smoothly
and stable, also the after sales service very convenient.
-2. SINOTRUK HOWO 8x4 Mining Dump Truck Main Specification.
| Description | Parameter value |
| Product Name | SINOTRUK HOWO 8x4 Mining Dump Truck |
| Application | For construction and mining work |
| Engine | WD615.47, 371HP, EURO II |
| Cabin | HW76 model, with bed, A/C, top warning lamp |
| Gearbox | HW19710, 10 forward and 2 reverse gear |
| Front Axle | 2x9,000kg |
| Driving Axle | 2x16,000kg |
| Tire | 12.00R20, 12+1 pcs, TRIANGLE brand |
| Bucket | 7300x2300x1500mm, bottom 8mm, side 6mm |
| Fuel Tank | 300L (400L fuel tank optional) |
| Loading Tons | 40-50 tons |
| Other | Intercooler protect cover, reverse buzzer optional |
| Dimension | 10400x2580x3400mm |
The SINOTRUK HOWO 8x4 mining dump truck specification is only for reference, we could
recommend the other model SINOTRUK HOWO 8x4 dump truck according to your request.
-3. SINOTRUK HOWO 8x4 Mining Dump Truck Lifting System.

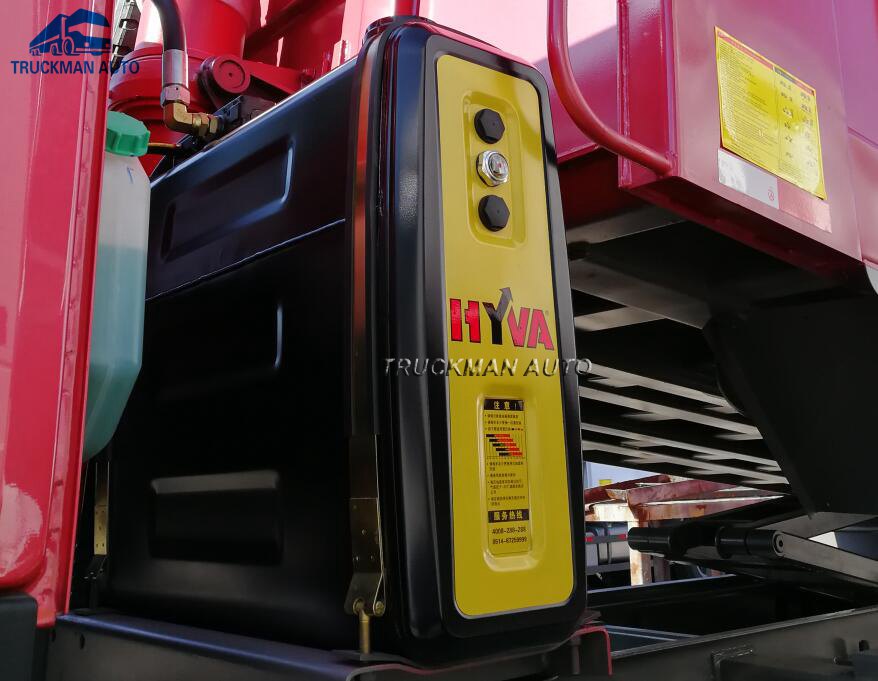

Our dump truck adopts Hyva-brand lifting system, the main components are Hyva hydraulic pump, Hyva
hydraulic oil tank, Hyva pneumatic valve, high-pressure oil pipe, low-pressure oil pipe, body locking device
and joints. Among them, Hyva hydraulic cylinders are excellent in quality, durable, excellent in performance,
safe and reliable, and Hyva hydraulic climbing valve is the control hub of the entire system. It has
two overflow functions to ensure that the system can work safely and stably for a long time. It adopts
proportional control. The system pressure fluctuation is small, and the operation is stable and reliable.
The use of Hyva's complete set of front roof hydraulic climbing system for dump trucks can effectively
extend the service life of the dump truck cylinder and the entire system and reduce maintenance costs.
