100 Tons 2 Line 4 Axle Low Bed Trailer

Product Categories

JINAN TRUCKMAN AUTOMOBILE CO.,LTD

Contact Now

Name: 100 Tons 2 Line 4 Axle Low Bed Trailer
Brand: TRUCKMAN AUTO
Price: 1 USD

Brand Name : TRUCKMAN AUTO

Model Number : TKM24100LST

Certification : SGS, BV, CIQ, FORM E

Place of Origin : CHINA

MOQ : 1 Unit

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 1500 Unit / Per Month

Delivery Time : 20 working days

Packaging Details : Nude

Loading Tons : 100 tons

Axle : 2 line 4 axle

Tire : 8.25R20, 16 pcs

Support Leg : JOST 28 tons

Brake System : WABCO brand

Material : T700 high strength steel

Contact Now

-1. 100 Tons 2 Line 4 Axle Low Bed Trailer Detail.

2 line 4 axle low bed trailer can loading 100 tons goods, such as construction machinery,

mining equipment and shield machine etc.

-. Axle brand have ZY, FUWA and BPW can optional.

-. Now all our low bed trailer use the high strength steel T700, load capacity is stronger than Q345.

-2. 100 Tons 2 Line 4 Axle Low Bed Trailer Specification.

Description	Parameter Value
Product Name	100 Tons 2 Line 4 Axle Low Bed Trailer
Application	Transport heavy duty machinery
Axle	2 line 4 axle
Tire	8.25R20, 16 pcs
Brake System	WABCO brand
Loading Platform	12000x3050mm
Material	T700 high strength steel
Ladder	850mm width spring mechanical ladder
Dimension	15200x3050x3450mm

100 Tons 2 Line 4 Axle Low Bed Trailer

The 100 tons 2 line 4 axle low bed trailer specification only for your reference,

we will recommend other model low bed trailer according to your request.

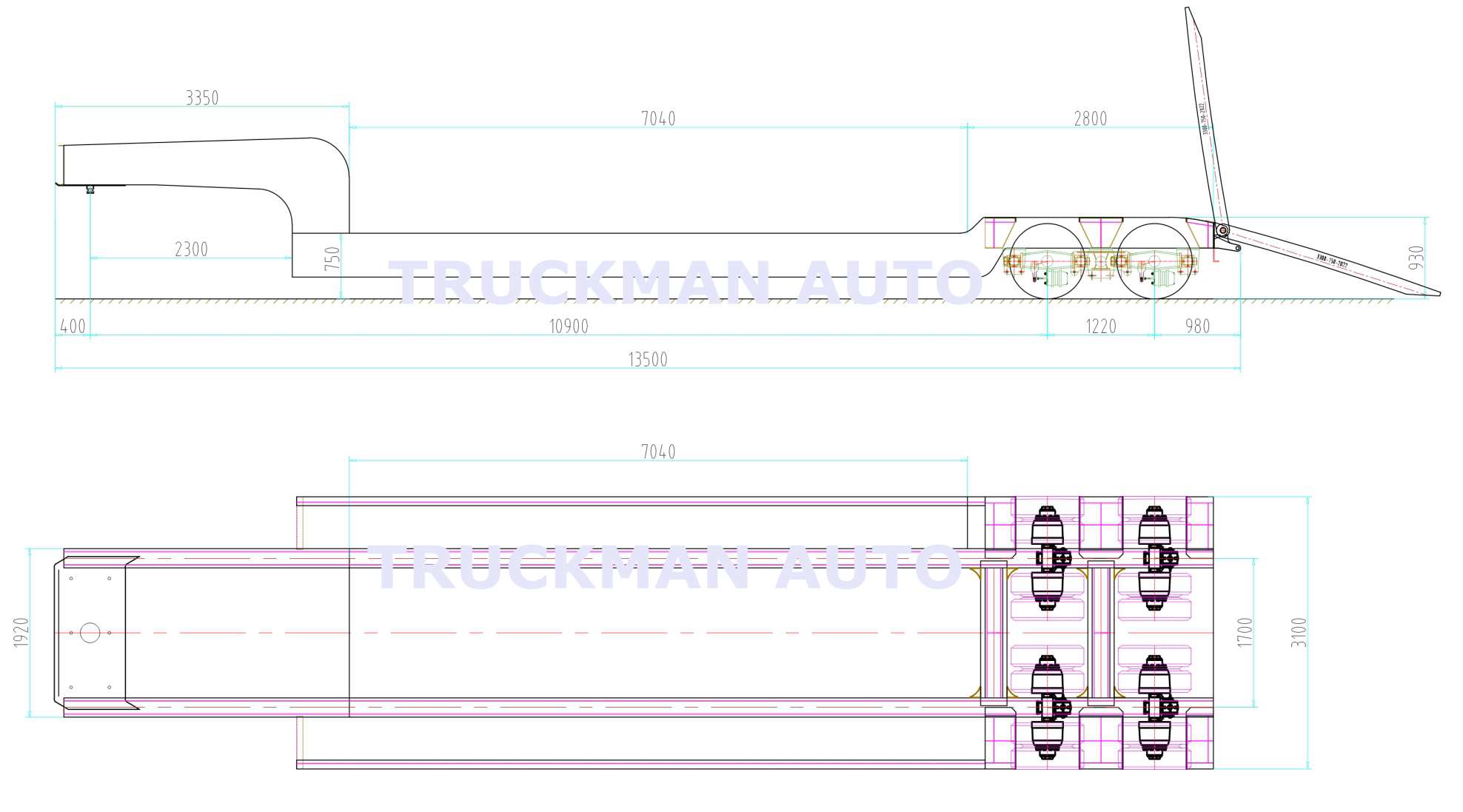

-3. 100 Tons 2 Line 4 Axle Low Bed Trailer Design Drawing.

This 2 line 4 axle low bed trailer design loading tons is 100 tons, material adopt the

high strength T700. and the side beam height is 280mm, upper, bottom and middle

plate thickness all is 8mm, improve the loading capacity. We also can design the

low bed trailer according to your request.

100 Tons 2 Line 4 Axle Low Bed Trailer

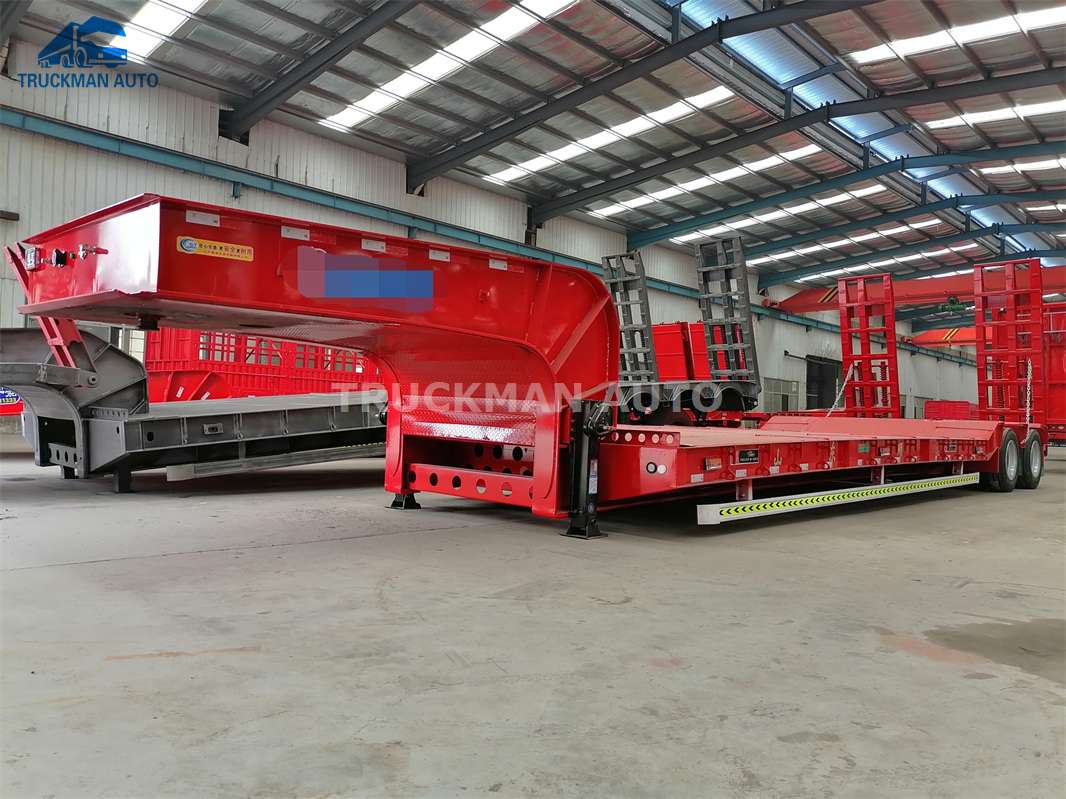

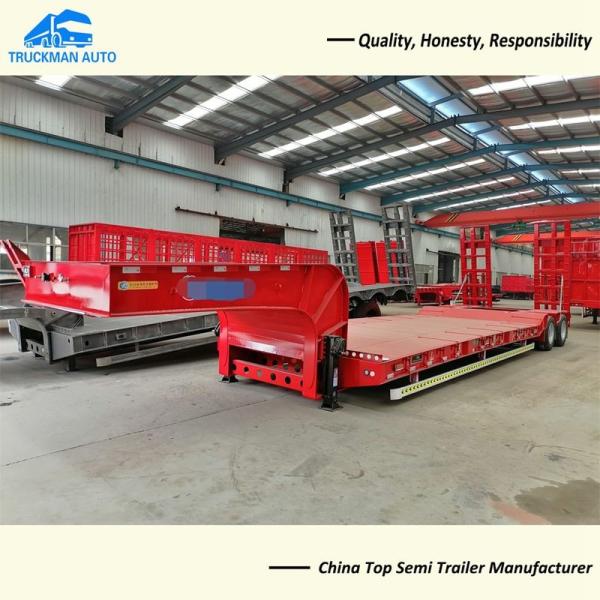

100 Tons 2 Line 4 Axle Low Bed Trailer Images
